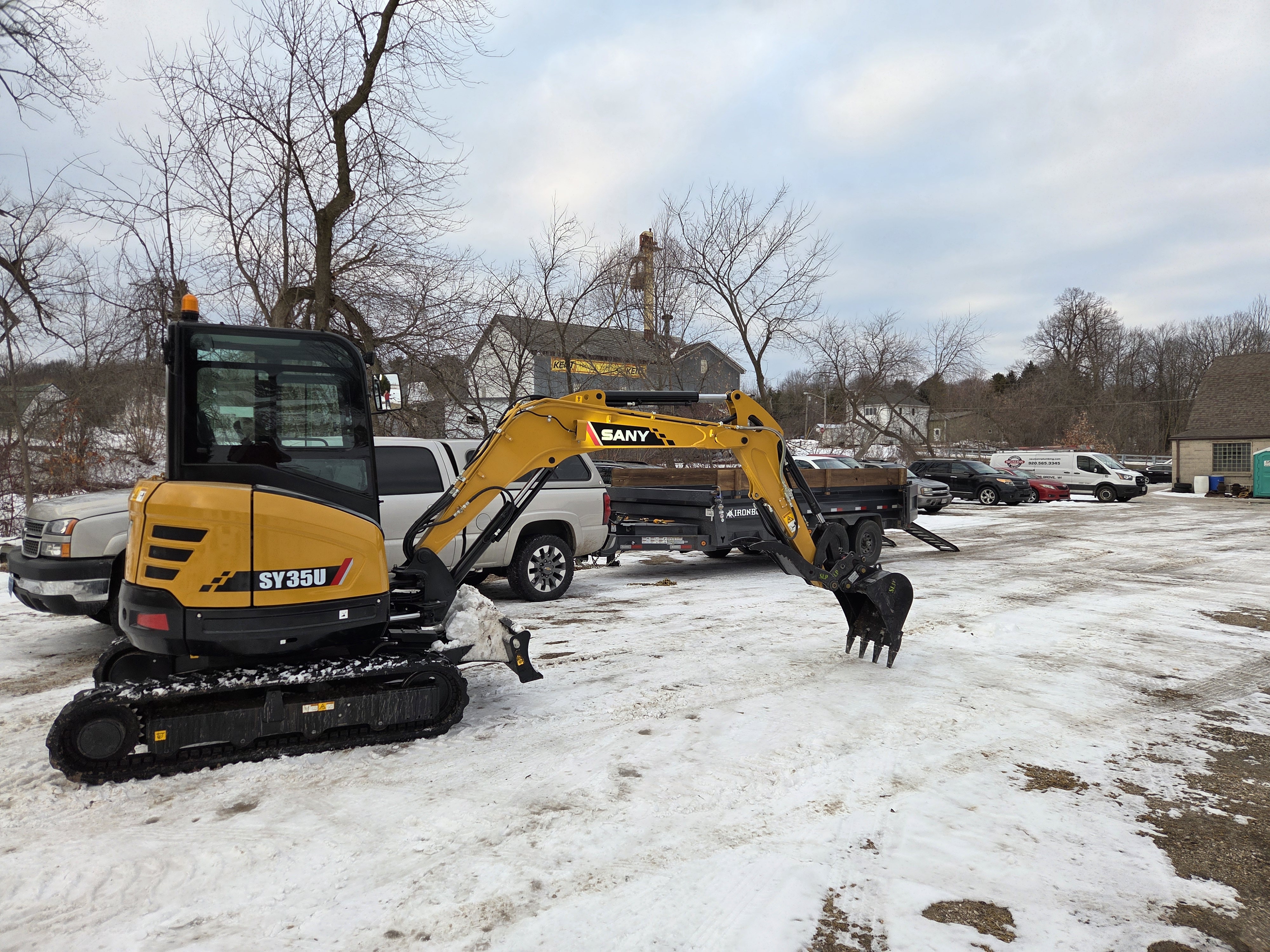

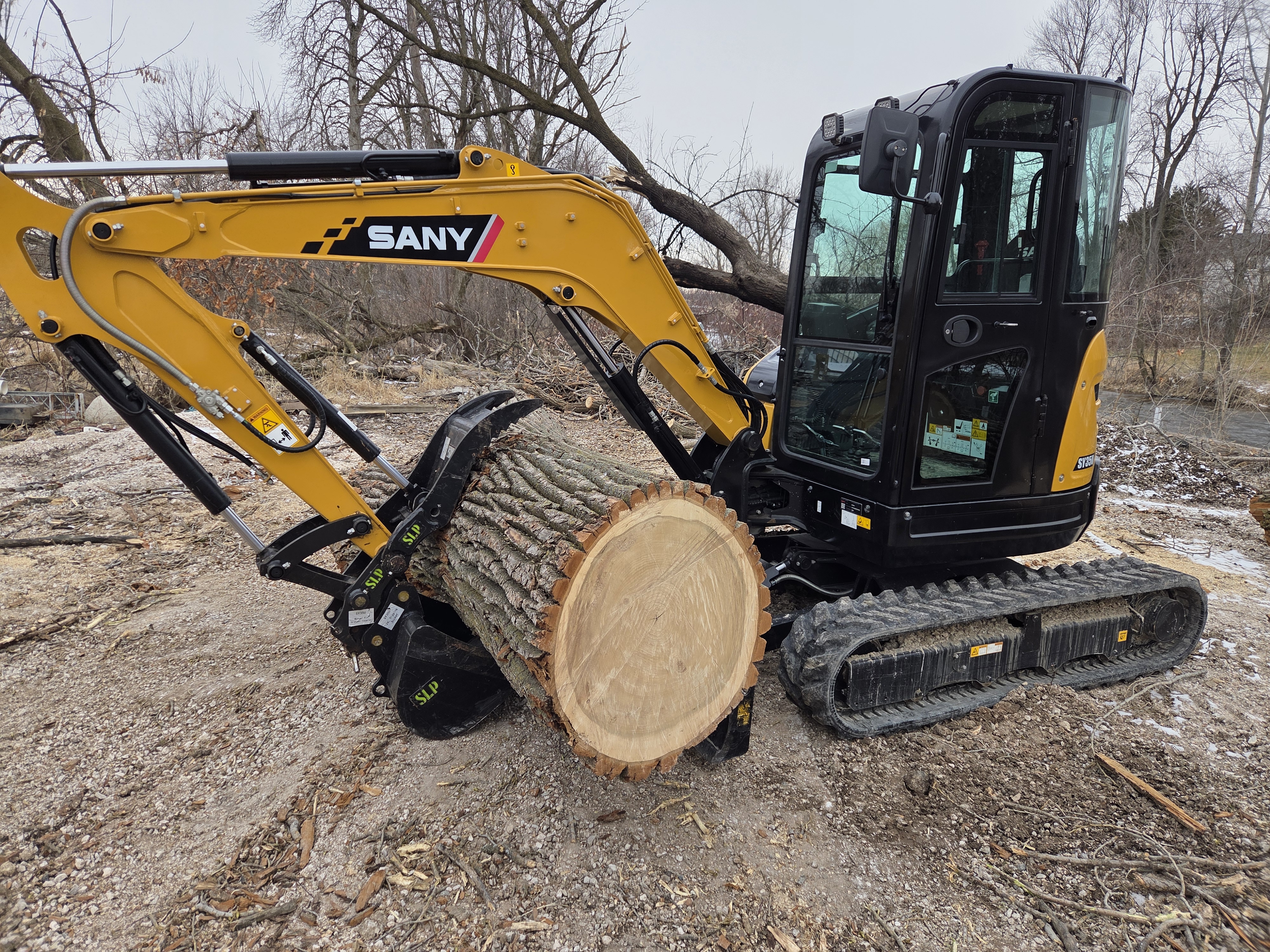

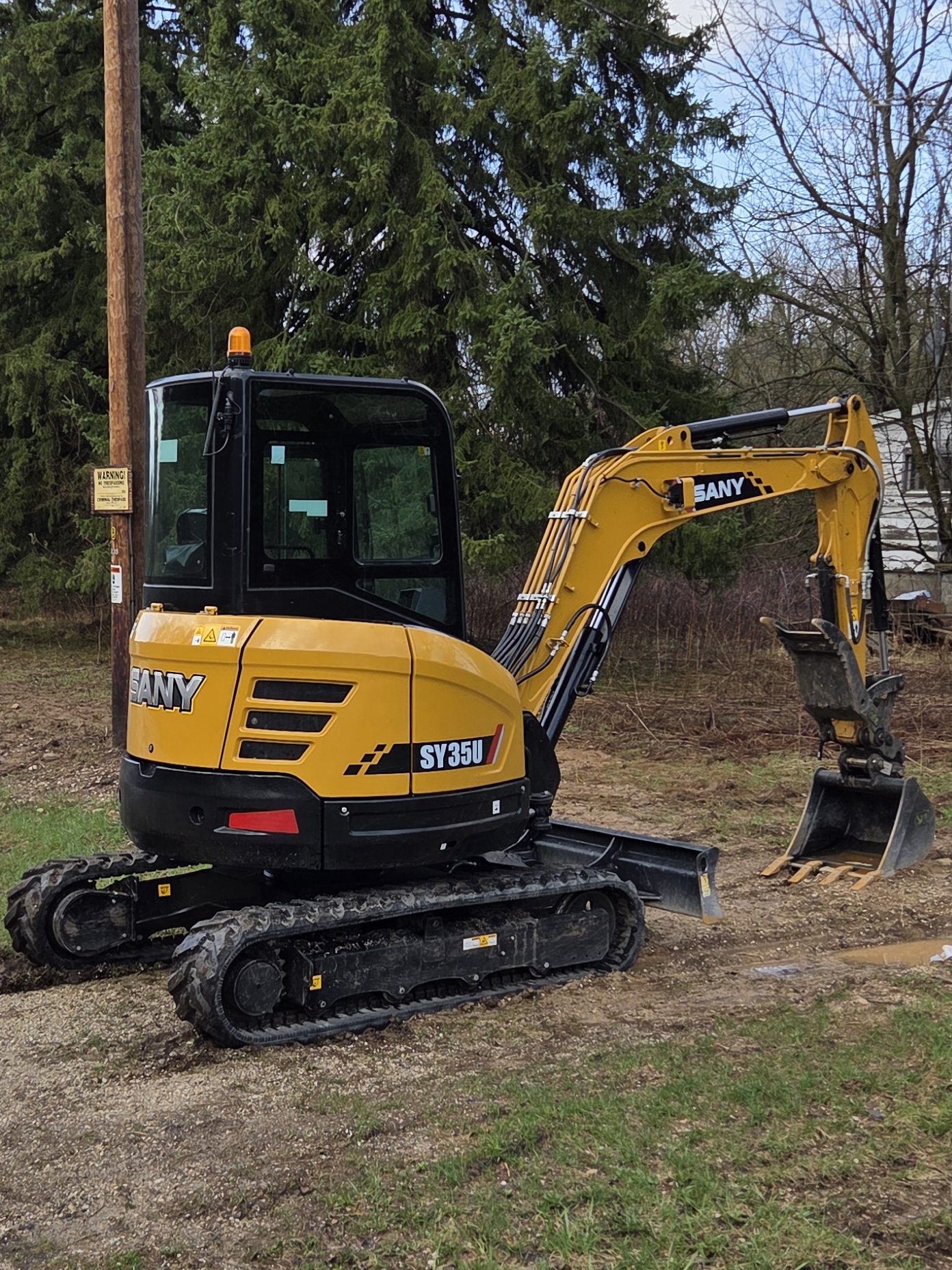

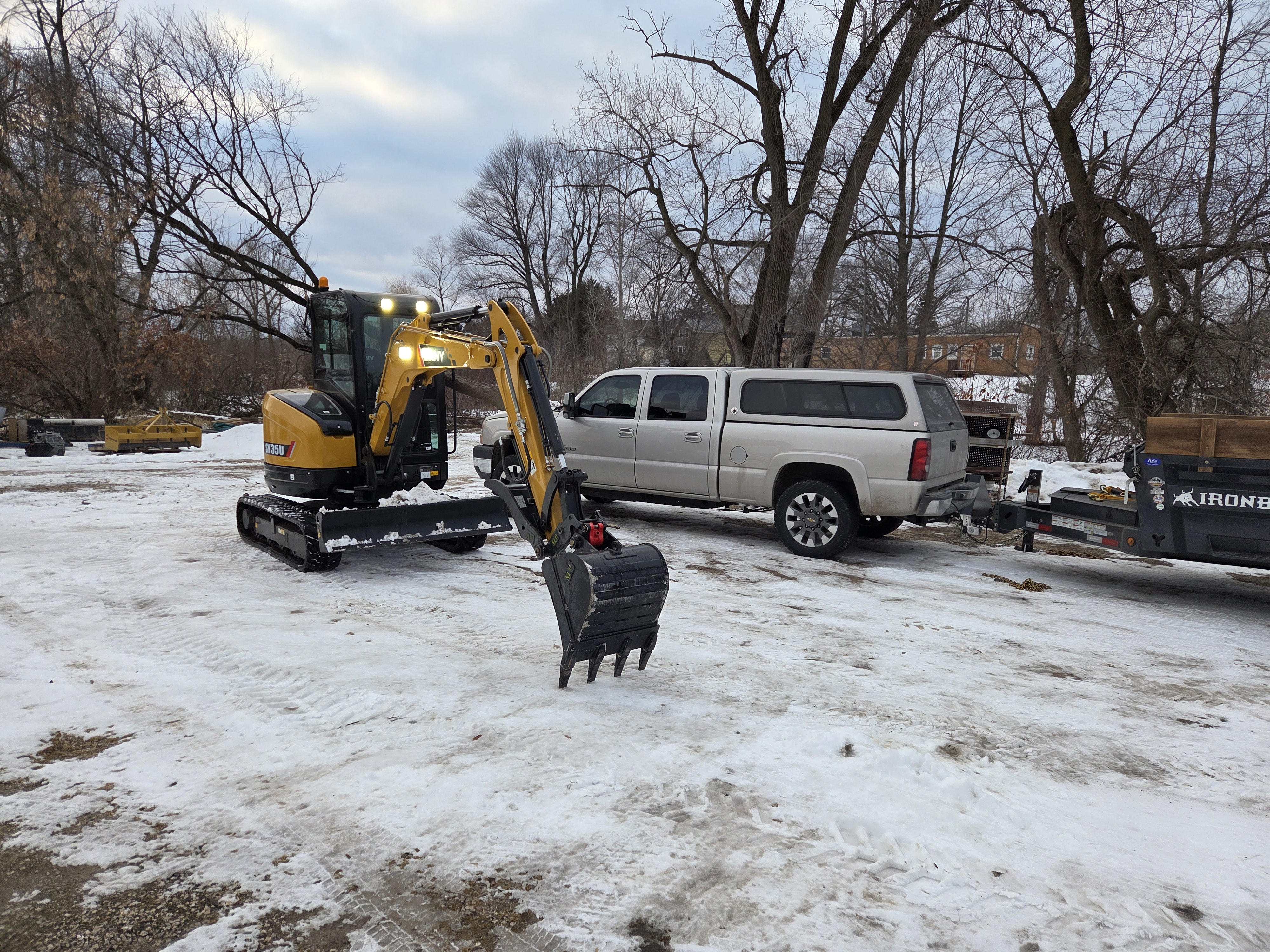

Sany SY35U specs
FREE DELIVERY AVAILABLE TO:
​
Sheboygan
Plymouth
Howards Grove
Elkhart lake
Glenbeulah
Kiel
Chilton
New Holstein
Sheboygan Falls
Local rural areas
​
Deliveries outside of 30 minutes will incur a $50 per hour of drive time there and back.
Example: If you're 1 hour away, between delivery and pickup it's 4 hours of driving. That would cost $200
Operating Weight (metric tons): 3.85
Operating Weight (lbs): 8,499
Dimensions
Transport Length (ft/in): 16' 2"
Transport Width (ft/in): 5' 8"
Transport Height (ft/in): 8' 3"
Tail Swing Radius (ft/in): 2' 10"
Tail Swing Type: Zero Tail Swing
Performance
Stick Length (ft/in): 4' 7"
Boom Length (ft/in): 8' 4"
Max Dig Depth (ft/in): 10' 2"
Max Depth of Vertical Wall (ft/in): 8' 10"
Reach at Ground Level (ft/in): 17' 11"
Dump Height (ft/in): 11' 4"
Boom Swing, right/left (deg): 51° / 64°
Bucket Breakout Force (lbf): 6,585
Engine Make: Yanmar
Engine Model: 3TNV88
Engine Net HP: 23.3
Hydraulics Pump Flow, Implement & Swing (gpm): 23.2
Max Relief Valve Pressure (psi): 3,553

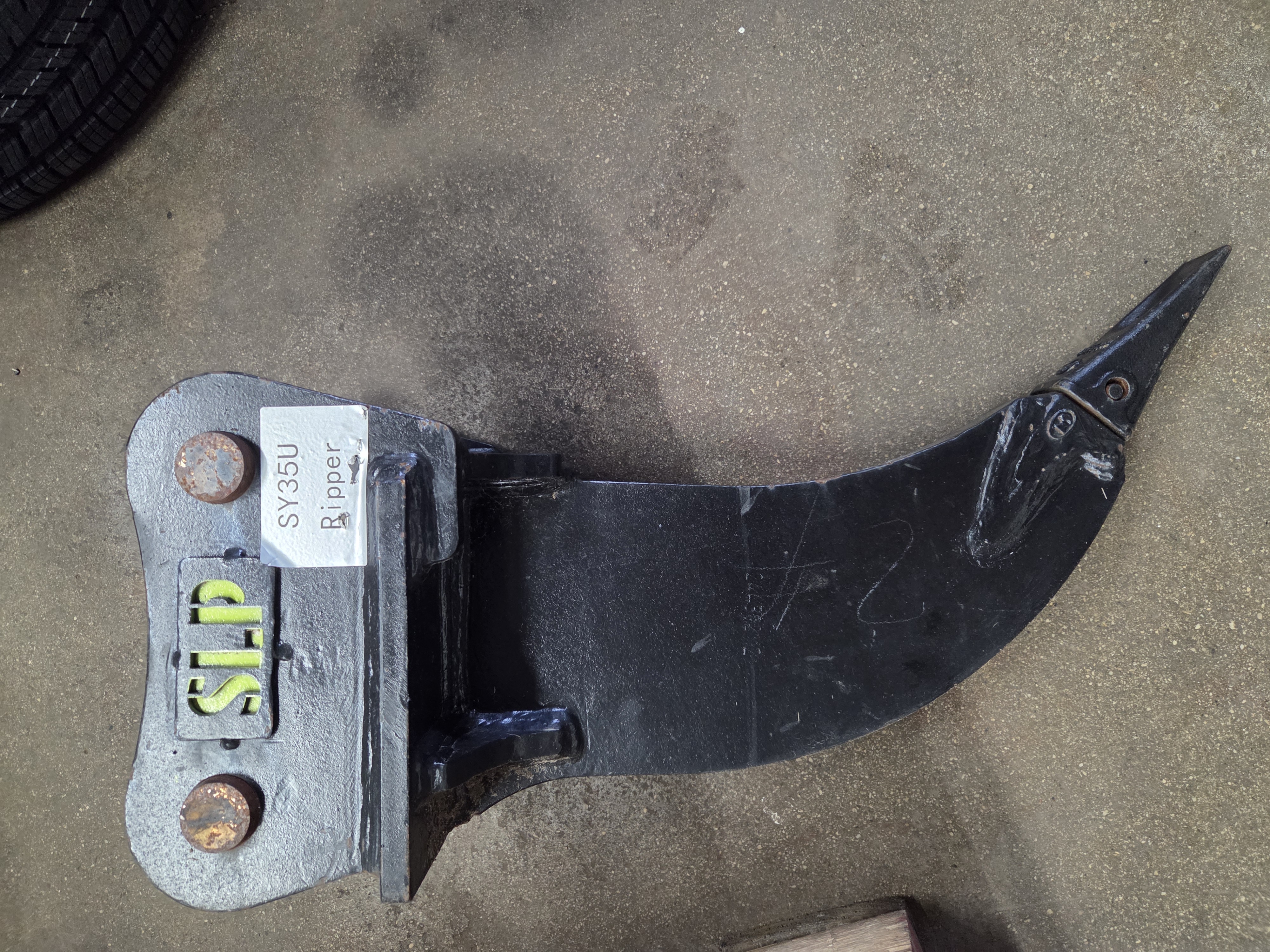

We now have a ripper tooth available
